The Glide

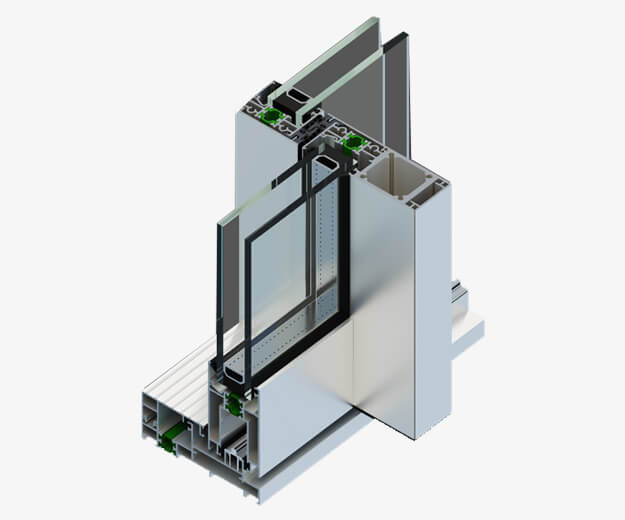

Thermal break, Lift & slide \ sliding system designed for premium properties and hospitality projects, offering wide vision areas through minimal profile design and only 40mm interlock section.
The system offers a high degree of endurance against extreme weather conditions, along with highest degree of safety & security in a modern design
System Specs
Sash Height — 3.0 m
Sash Width — 3.0 m
Max Sash Weight — 420 kg
Glazing — 24-34 mm
Frame Width — 110 mm
Thermal Break — Polyamides
Slim interlock section of only 40 mm
| Performance Test | Value |
|---|---|
| Air Leakage (ASTM E 283/E 283M-19) | 600 Pa |
| Static Water Penetration (ASTM E 331-00 (2016)) | 800 Pa |
| Dynamic Water Penetration (AAMA 501.1-17) | 800 Pa |
| 100% Design Wind Pressure (ASTM E 330/E330M-14) | 1500 Pa |
| 150% Design Wind Pressure (ASTM E 331/E330M-14) | 2250 Pa |
