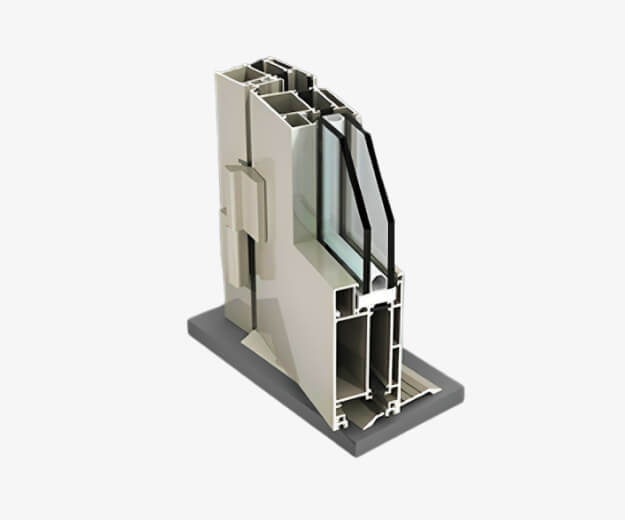

Hinged TB-600
- Thermal break frame width 60mm.
- Features glass – 18mm to 38mm
- Tested at Al-Futtaim Exova
- Heavy Duty applications requirements.
- Possibility of bi-coloring.
Doors can reach up to 4.5m height x 0.8m width
Applicable for swing doors
Applicable for concealed hinges.
SS 600 Thermal break and Hinged system is a unique, elegant 60mm width frame designed to achieve a better performance with a wide variety of frames available to cover the needed applications. It is designed for heavy duty use (H-HC40) according to the American National Standard. All profiles are available in all colours in order to meet today’s architectural requirements, along with the possibility of bi-coloration due to the separation done by the thermal break strips.
Frame
Tubular with a width of 60mm, a wide range of frames is available to suit most of the required application in the building codes.
Sash
Tubular straight. They are 60 or 67 mm thick. A wide range available to cover all applications of doors, single and double leaves and outward openings even swing doors.
Assembly
Assembly of the frames and sashes is done by 45° cut whereas door bottom on profiles are custom 90°.
Glazing
Standard or insulating ranges from “18 to 27”mm maintained by 3 EPDM gaskets and a glazing bead must be on the inside installation.
Sealing
Sealing is achieved by the compression of 3 EPDM gaskets pressured during closing.
